Description

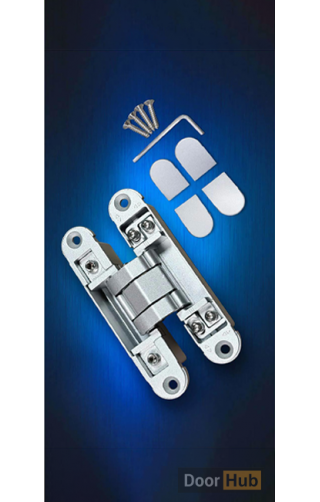

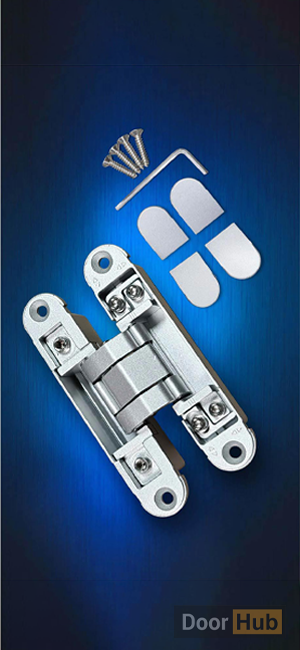

DHZDG 35 3D hidden hinges UAE from DoorHub are engineered for modern architectural door systems requiring concealed hardware, precise adjustment, and clean aesthetics. Manufactured from durable zinc alloy, these concealed hinges remain hidden when the door is closed, creating a seamless appearance for contemporary interior environments.

Widely specified in projects across Dubai and Abu Dhabi, DHZDG 35 3D hidden hinges UAE provide a full opening angle of 0° to 180°, allowing smooth door movement and enhanced accessibility. The hinge system supports door weights of 35–40kg using two hinges and up to 55–60kg using three hinges. Compatible with door thicknesses ranging from 30mm to 45mm, these hinges are suitable for solid wood doors and aluminium wood door systems.

For developers, contractors, and architects, DHZDG 35 3D hidden hinges UAE offer a reliable concealed hardware solution that combines functionality, durability, and premium architectural design for residential and commercial projects throughout the UAE.

Key Features

Premium zinc alloy construction

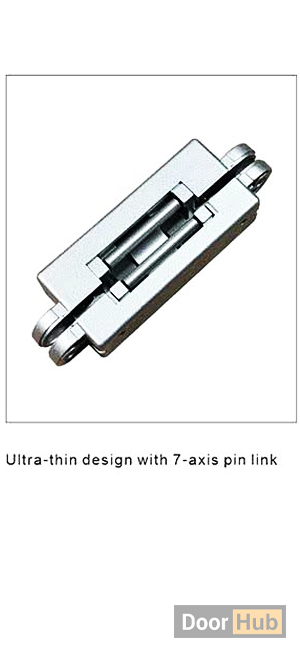

Concealed hinge design for clean aesthetics

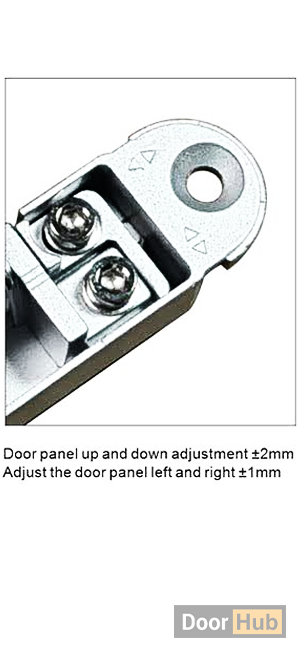

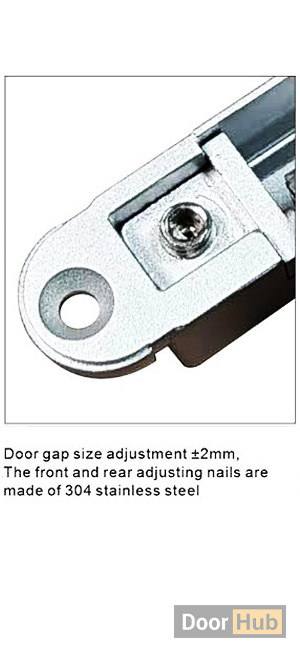

3D adjustable hinge system

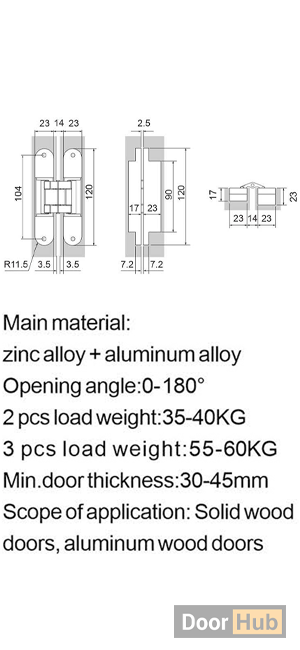

Full opening angle from 0° to 180°

Load capacity of 35–40kg with 2 hinges

Load capacity of 55–60kg with 3 hinges

Suitable for door thicknesses from 30mm to 45mm

Compatible with solid wood and aluminium wood doors

Applications

Concealed interior door systems

Modern villa developments
