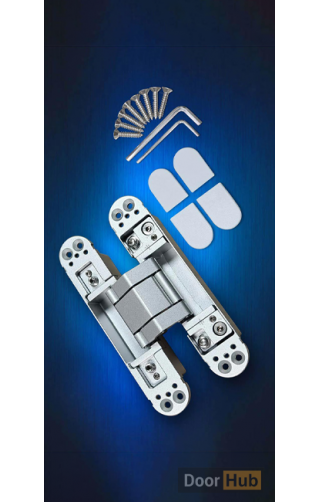

DHZDG 100 3D concealed hinges UAE from DoorHub are engineered for high-performance architectural door systems requiring exceptional load-bearing capacity, concealed installation, and precise 3D adjustment. Manufactured from premium zinc alloy and aluminium alloy, these hinges remain completely hidden when the door is closed, creating a seamless and sophisticated appearance for modern interiors.

Specified across luxury residential, hospitality, and commercial developments in Dubai and Abu Dhabi, DHZDG 100 3D concealed hinges UAE provide a full opening angle of 0° to 180° for unrestricted door movement and enhanced accessibility. The system supports door weights of 100–150kg using two hinges and up to 120–125kg using three hinges, making it suitable for large-format and heavy-duty door installations. Compatible with door thicknesses ranging from 45mm to 60mm, these hinges are ideal for solid wood doors and aluminium wood door systems.

For developers, architects, and contractors, DHZDG 100 3D concealed hinges UAE deliver outstanding strength, premium aesthetics, and reliable long-term performance for demanding construction and fit-out projects across the UAE.

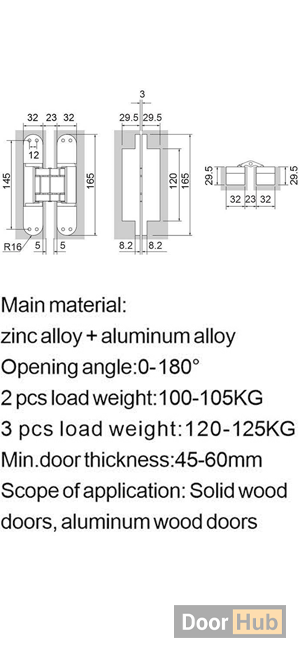

Key Features

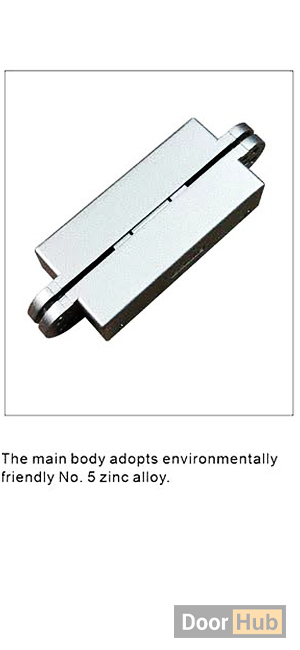

Premium zinc alloy and aluminium alloy construction

Concealed hinge design for seamless architectural aesthetics

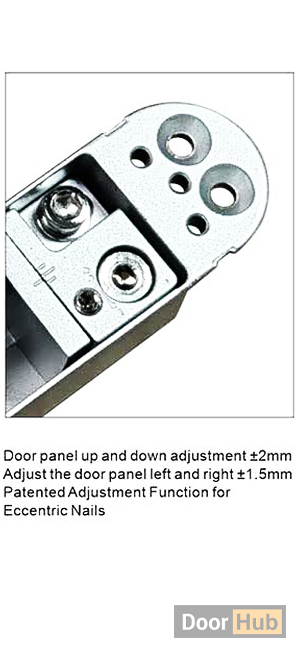

Advanced 3D adjustment functionality

Full opening angle from 0° to 180°

Load capacity of 100–150kg with 2 hinges

Load capacity of 120–125kg with 3 hinges

Suitable for door thicknesses from 45mm to 60mm

Compatible with solid wood and aluminium wood doors

Applications

Luxury villa entrance doors

Premium residential developments

Heavy-duty commercial doors

Hospitality and hotel projects

Executive office and boardroom doors

Aluminium wood door installations

Architectural fit-out projects

Why Developers Choose DoorHub

Specialist supplier of premium architectural hardware

High-capacity concealed hinge solutions

Reliable supply for large-scale UAE projects

Consistent quality and performance standards

Technical expertise for modern door systems

Trusted partner in Dubai and Abu Dhabi
